Hi all 🙂
I’m trying to get my Unicable LNB (Dur-Line UK124) working with Tvheadend version HTS Tvheadend 4.3-2758g27295c5a4.
So far, everything seems to be working reasonably well, but when I try to configure the LNB, I can only choose between “Unicable 1 and 2 switch”.

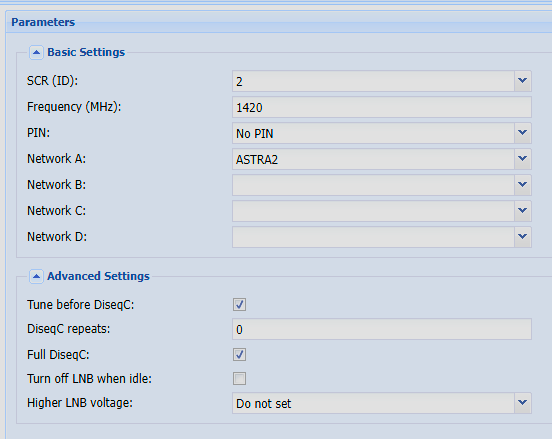

For example, if I configure it like this:
Tvheadend is able to scan the muxes successfully, but I’m unable to play any FTA channels.
I’ve also attached some logs that might help identify what’s going wrong.
System; Ubuntu 20.04 X64
Any help or advice would be greatly appreciated. Thanks in advance!
2026-08-10 19:53:21.399 service-mapper: ASTRA2/10773.25H/Ideal World HD: success
2026-08-10 19:53:25.399 mpegts: 10773.25H in ASTRA2 - tuning on TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0
2026-08-10 19:53:25.597 subscription: 01CF: "epggrab" subscribing to mux "10773.25H", weight: 4, adapter: "TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0", network: "ASTRA2", service: "Raw PID Subscription"
2026-08-10 19:53:29.517 linuxdvb: Unhandled ERROR_BIT_COUNT scale: 0
2026-08-10 19:53:55.480 http: 192.168.1.133: using ticket 970fd159c67f7ce2dce0dee09fada0bca91937b4 for /stream/channel/ffb4e7ad2d90622e7220b2c469f37768
2026-08-10 19:53:55.480 subscription: 01D0: "HTTP" subscribing on channel "Ideal World HD", weight: 100, adapter: "TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0", network: "ASTRA2", mux: "10773.25H", provider: "BSkyB", service: "Ideal World HD", profile="pass", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 19:54:05.484 subscription: 01D0: service instance is bad, reason: No input detected
2026-08-10 19:54:05.484 subscription: 01D0: "HTTP" subscribing on channel "Ideal World HD", weight: 100, adapter: "TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0", network: "ASTRA2", mux: "10773.25H", provider: "BSkyB", service: "Ideal World HD", profile="pass", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 19:54:15.485 subscription: 01D0: service instance is bad, reason: No input detected
2026-08-10 19:54:15.485 subscription: 01D0: "HTTP" subscribing on channel "Ideal World HD", weight: 100, adapter: "TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0", network: "ASTRA2", mux: "10773.25H", provider: "BSkyB", service: "Ideal World HD", profile="pass", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 19:54:16.485 webui: Stop streaming /stream/channel/ffb4e7ad2d90622e7220b2c469f37768?ticket=970fd159c67f7ce2dce0dee09fada0bca91937b4, timeout (20 secs) waiting for data packets to start
2026-08-10 19:54:16.485 subscription: 01D0: "HTTP" unsubscribing from "Ideal World HD", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 19:54:16.510 http: 192.168.1.133: using ticket 970fd159c67f7ce2dce0dee09fada0bca91937b4 for /stream/channel/ffb4e7ad2d90622e7220b2c469f37768
2026-08-10 19:54:16.510 subscription: 01D1: "HTTP" subscribing on channel "Ideal World HD", weight: 100, adapter: "TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0", network: "ASTRA2", mux: "10773.25H", provider: "BSkyB", service: "Ideal World HD", profile="pass", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 19:54:26.511 subscription: 01D1: service instance is bad, reason: No input detected
2026-08-10 19:54:26.511 subscription: 01D1: "HTTP" subscribing on channel "Ideal World HD", weight: 100, adapter: "TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0", network: "ASTRA2", mux: "10773.25H", provider: "BSkyB", service: "Ideal World HD", profile="pass", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 19:54:36.514 subscription: 01D1: service instance is bad, reason: No input detected
2026-08-10 19:54:36.514 subscription: 01D1: "HTTP" subscribing on channel "Ideal World HD", weight: 100, adapter: "TurboSight TBS 6909x (Octa DVB-S/S2/S2X) #9 : DVB-S #0", network: "ASTRA2", mux: "10773.25H", provider: "BSkyB", service: "Ideal World HD", profile="pass", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 19:54:37.514 webui: Stop streaming /stream/channel/ffb4e7ad2d90622e7220b2c469f37768?ticket=970fd159c67f7ce2dce0dee09fada0bca91937b4, timeout (20 secs) waiting for data packets to start
2026-08-10 19:54:37.514 subscription: 01D1: "HTTP" unsubscribing from "Ideal World HD", hostname="192.168.1.133", client="VLC/3.0.23 LibVLC/3.0.23"
2026-08-10 20:03:35.508 epggrab: EIT: EPG Grabber - data completion timeout for 10773.25H in ASTRA2
2026-08-10 20:03:35.508 epggrab: PSIP: ATSC Grabber - data completion timeout for 10773.25H in ASTRA2
2026-08-10 20:03:35.508 subscription: 01CF: "epggrab" unsubscribing
