How to Install TBS6985 Driver on Ubuntu

Arshvinder Singh Sehmi · 2014-01-10T06:29:57+00:00

Hi Team, I am new to linux. I shall be very thankful to you if anybody could please suggest and help me in installing TBS6985 drivers on Ubuntu 12.03.92. I...

Arshvinder Singh Sehmi

Can anybody please suggest me what shall I do starting from scratch, after installing Ubuntu12.02 LTS 32-bit OS.

What all utilities and applications I need and in what order I have to execute to make the things work?

Regards,
ErSehmi

Arshvinder Singh Sehmi

the output of Can you post output of:

uname -a

is Linux HP6040in 3.8.0-29-generic #42~precise1-Ubuntu SMP Wed Aug 14 15:31:16 UTC 2013 i686 i686 i386 GNU/Linux

And can you tell, did you run:
./v4l/tbs-x86.sh
or

./v4l/tbs-x86_64.sh

And I ran the ./v4l/tbs-x86.sh

Arshvinder Singh Sehmi

Can somebody guess and give me the solution of this issue :

root@HP6040in:~/tbs/linux-tbs-drivers# dmesg | grep -i dvb

[ 8.580508] DVB: registering new adapter (SAA716x dvb adapter)
[ 9.428427] IP: [<f90dac83>] tbsctrl1+0x3/0x10 [saa716x_tbs_dvb]
[ 9.428887] Modules linked in: tbs6985fe(POF) snd_hda_codec_realtek(F) rc_tbs_nec(OF) saa716x_tbs_dvb(OF+) ir_lirc_codec(OF) lirc_dev(OF) ir_mce_kbd_decoder(OF) ir_sony_decoder(OF) ir_jvc_decoder(OF) tbs6991se(POF) ir_rc6_decoder(OF) ir_rc5_decoder(OF) ir_nec_decoder(OF) tbs6928fe(POF) tbs6922fe(POF) rc_core(OF) saa716x_core(OF) snd_hda_intel(F+) snd_hda_codec(F) dvb_core(OF) i2c_algo_bit(F) snd_hwdep(F) snd_pcm(F) tbs6618fe(POF) snd_seq_midi(F) snd_rawmidi(F) tbs6991fe(POF) snd_seq_midi_event(F) tbs6982se(POF) tbs6928se(POF) tbs6985se(POF) tbs6923fe(POF) snd_seq(F) snd_timer(F) snd_seq_device(F) stv090x(OF) snd(F) soundcore(F) coretemp(F) psmouse(F) serio_raw(F) tbs6680fe(POF) i2c_nforce2(F) drm(F) microcode(F) snd_page_alloc(F) tbs6982fe(POF) wmi(F) mac_hid(F) lp(F) parport(F) hid_generic(F) usbhid(F) hid(F) usb_storage(F) pata_acpi(F) ahci(F) libahci(F) firewire_ohci(F) forcedeth(F) firewire_core(F) crc_itu_t(F) pata_amd(F)
[ 9.432002] EIP is at tbsctrl1+0x3/0x10 [saa716x_tbs_dvb]
[ 9.432002] [<f90d716f>] saa716x_tbs6985_frontend_attach+0xef/0x470 [saa716x_tbs_dvb]
[ 9.432002] [<f9086bbf>] saa716x_dvb_init+0x4f/0x510 [saa716x_core]
[ 9.432002] [<f90da752>] saa716x_tbs_pci_probe+0x1b2/0x300 [saa716x_tbs_dvb]
[ 9.432002] [<f90da8bc>] saa716x_tbs_init+0x1c/0x20 [saa716x_tbs_dvb]
[ 9.432002] [<f90da8a0>] ? saa716x_tbs_pci_probe+0x300/0x300 [saa716x_tbs_dvb]
[ 9.432002] EIP: [<f90dac83>] tbsctrl1+0x3/0x10 [saa716x_tbs_dvb] SS:ESP 0068:f24a5cb4

Arshvinder Singh Sehmi

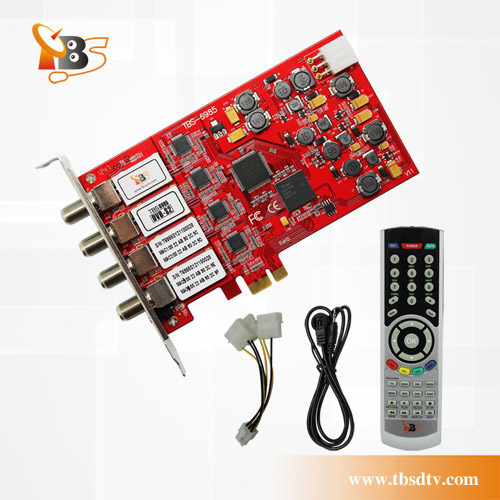

tha cable I got with my card is same as shown in this figure. Please suggest me now how many PSU Side connecters of this cable I have to connect with PSU Power molex connector (4-pin connector) .

http://www.tbsdtv.com/products/images/tbs6985/tbs6985_4.jpg

Also, I ran the following command and it yields me

root@HP6040in:~/tbs/linux-tbs-drivers# dmesg | grep -i frontend
[ 9.024024] TurboSight TBS 6985 Frontend Attaching...

[ 9.024653] [<f88c716f>] saa716x_tbs6985_frontend_attach+0xef/0x470 [saa716x_tbs_dvb]

Arshvinder Singh Sehmi

Fianlly I got the output of the command as

root@HP6040in:~# dmesg | grep -i dvb

[ 7.632523] DVB: registering new adapter (SAA716x dvb adapter)
[ 8.340383] TurboSight TBS6985 DVB-S2 card port0 MAC=00:22:ab:90:6c:28
[ 8.340388] DVB: registering adapter 0 frontend 0 (TurboSight TBS 6985 DVBS/S2 frontend)...
[ 8.340505] DVB: registering new adapter (SAA716x dvb adapter)
[ 8.892801] TurboSight TBS6985 DVB-S2 card port1 MAC=00:22:ab:90:6c:29
[ 8.892806] DVB: registering adapter 1 frontend 0 (TurboSight TBS 6985 DVBS/S2 frontend)...
[ 8.893033] DVB: registering new adapter (SAA716x dvb adapter)
[ 9.444796] TurboSight TBS6985 DVB-S2 card port2 MAC=00:22:ab:90:6c:2a
[ 9.444801] DVB: registering adapter 2 frontend 0 (TurboSight TBS 6985 DVBS/S2 frontend)...
[ 9.445000] DVB: registering new adapter (SAA716x dvb adapter)
[ 9.996800] TurboSight TBS6985 DVB-S2 card port3 MAC=00:22:ab:90:6c:2b

[ 9.996805] DVB: registering adapter 3 frontend 0 (TurboSight TBS 6985 DVBS/S2 frontend)...

I think everything is fine now. Please confirm?

Thanks a lot to all who have helped me!!!

Regards,
ErSehmi

srx srx

So what did you do?

dmesg output is ok.

if "ls -l /dev/dvb" shows at least 4 adapters you are good to go.

Just remember, do not upgrade your kernel. You will have to compile and install driver again each time you install new kernel.

Arshvinder Singh Sehmi

The output of

ls -l /dev/dvb

total 0
drwxr-xr-x 2 root root 120 Jan 12 13:53 adapter0
drwxr-xr-x 2 root root 120 Jan 12 13:53 adapter1
drwxr-xr-x 2 root root 120 Jan 12 13:53 adapter2

drwxr-xr-x 2 root root 120 Jan 12 13:53 adapter3

I just noticed that I am having kernel 3.x and I was earlier using wrong file version of v4l i.e for kernel 2.x

Arshvinder Singh Sehmi

Please suggest me how do I play a particular TV channel in TvHeadEnd?

When I click on Play link ... a window prompts me aksing choose an application. Please suggest me what application I need to install to play TV channel

Regards,
ErSehmi

srx srx

Hmm... I did not notice that my driver has choice of kernel version.
I downloaded the latest version and it worked with my 3.8 kernel.

Did you use driver from CD? I have not even looked what the CD contains. I downloaded driver from internet. CD-s are outdated already the day they were made.

For playing I use XBMC.
Under System > Add-ons > Disabled addons > PVR clients > Tvheadend HTSP Client > Configure you need to set your IP, and user/password. If it's running on your local computer, then IP is 127.0.0.1, user/pass is the same you use for webpage.
Under System > LiveTV > General you must enable LiveTV.
And then you should be able to watch live tv with XBMC.

You can also watch movies, play music and do some other things.

There is also HTSP plugin for VLC:
https://tvheadend.org/d/1169-tutorial-using-the-vlc-htsp-plugin

I do not like VLC much and I have not tried it.

I use Tvheadend as server and use many XBMC clients in my house, running on windows, linux and raspberry pi.

Arshvinder Singh Sehmi

Please suggest me one more thing -

I have installed xbmc client at android tab. When I try to connect it to tvheadend. I get the following log in tvheadend System log. XBMC client automatically got disconnected of it owns. Where is an issue?

Jan 12 17:00:25 htsp: 10.0.0.11: Welcomed client software: XBMC Media Center

Jan 12 17:00:25 htsp: 10.0.0.11 [ XBMC Media Center ]: Disconnected

Jan 12 17:00:36 htsp: Got connection from 10.0.0.11

Jan 12 17:00:36 htsp: 10.0.0.11: Welcomed client software: XBMC Media Center

Jan 12 17:00:37 htsp: 10.0.0.11 [ XBMC Media Center ]: Disconnected

At Android Tab in XBMC, I am getting the messagee TvHeadEnd HTSP Client : Connection Lost Access Denied!

Please help!

srx srx

Might be WiFi signal problem.
Streaming video needs good and stable connection.

Arshvinder Singh Sehmi

I think Connection Lost Access Denied is not due to weak signal. There must me some access settings at TVHeadEnd that is denying access to this 10.0.0.11 client

Not sure what is that?

Arshvinder Singh Sehmi

Finally Got it working without any issue.

Thanks a lot to TVHeadEnd Team for providing such a great & valueable software for free.

Thanks & Regards,
ErSehmi!

Arshvinder Singh Sehmi

Hi All,

Is there any options at server end to control and set the server buffering, or how to deal with buffering while using TVHeadEnd?

I am using HTSP plugIn with VLC right now!

Also, I need one more info regarding the TVHeadEnd System Log, when connected to XBMC Client -

an 12 21:58:25 subscription: "10.0.0.11 [ admin | XBMC Media Center ]" subscribing on "9X",*weight: 150*, adapter: "TurboSight TBS 6985 DVBS/S2 frontend", network: "DD DIRECT +", mux: "DD DIRECT +: 11,150,000 kHz Vertical (Default (Port 0, Universal LNB))", provider: "DD", service: "9X", quality: 100

Jan 12 21:58:25 TS: TurboSight TBS 6985 DVBS/S2 frontend/DD DIRECT +: 11,150,000 kHz Vertical (Default (Port 0, Universal LNB))/9X: MPEG2VIDEO @ #531:Continuity counter error

What is weight: 150, in the first line of SYSTEM log?

What are these continuity errors?

Please suggest!

Regards,
ErSehmi

srx srx

All buffering is done on the client side.

Look around in VLC, there might be option to set streaming buffer size.

continuity errors could be related to bad signal - but I'm not sure.

If there is just few here and there, I would not worry about it. All signals coming over the air will have few errors in it.

Weight in other words is priority. If multiple clients/tasks need to use one tuner, then weight comes into the play. If you look at the log, then you see that epggrab runs every now and then, and epggrab has weight 1. So when you watch a channel and epggrab wants to run, then your subscription (weight 150) outweighs epggrab and epggrab request will be denied. Or something like that.
